6.5hp 196cc OHV Gas Engine Recoil Start Motor
6.5hp 196cc OHV Gas Engine Recoil Start Motor
Item# gas_engine
Mfg. List Price: $229.98
Our price: $164.98
Shipping Insurance:

Product Description

Just need parts? Click Here to see our available parts for this engine

Not Sure What Part You Need? Download the manual

THIS IS THE NEW DESIGN
Brand New in the box 6.5HP engine
FREE SHIPPING*
This is one tough little workhorse of a motor. Ideal for tillers, pressure washers, generators, snowblowers, wood chippers, shredders, mini-bikes and small motorcycles, etc. Also great for go carts and bar stools.
Easy recoil starting and 1 Gallon fuel capacity mean you'll get lots of fun, excitement or hard work from this sturdy unit.
Put your mouse over any image to enlarge the view

New Design

motor shaft

Motor front

motor left

  • 4 Stroke Single Cylinder, 196cc
  • OHV Air Cooled
  • Dimensions:
    12"L x 14.3"W x 13.2"H
  • Fuel:
    86 Octane+ Unleaded
  • Idle Speed:
    1400 RPM (+200/-150)
  • Controls:
    Throttle/Fuel/Choke/On-Off
  • HP Rating:
    6.4 HP @ 3600 RPM
  • Max Torque:
    9.76 Ft/Lbs @ 2500 RPM
  • Horizontal Crankshaft PTO: 2-7/16" x ¾" Diam.
    Tapped 5/16" x 24 UNF
  • Oil Capacity: .63Qt
  • Spark Plug: BP6ES
  • Weight approx 34.5lbs
  • Displacement: 12 cu"
  • Fuel Tank Capacity: .95 Gal approx 2 hr run time
  • Ignition System: Transistorized Magneto
  • PTO Shaft Rotation: Counterclockwise
  • Oil: SAE 10W-30 API SJ or SL
  • Fuel Consumption: .51 GPH
  • Recoil Pull Start

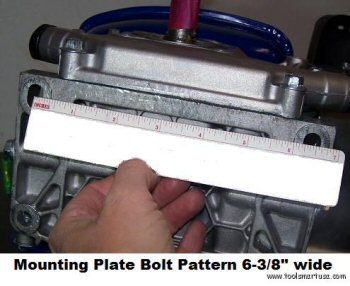

  • Mounting base dimensions: 3" to 3 1/8"W x 6 3/8"L
    holes approx 6¼" apart long way, 3¼" apart short way
    • (All measurements are center to center)
  • Output shaft is 2½" to the seal
    		•
